Magewell USB Capture Plus 系列 - 提供各種 I/O 端子靈活選擇
美樂威支援大多數常用信號,與一些老舊設備視訊信號來源。

USB Capture PLUS HDMI | SDI | DVI | HDMI 4K | SDI 4K 詳細規格

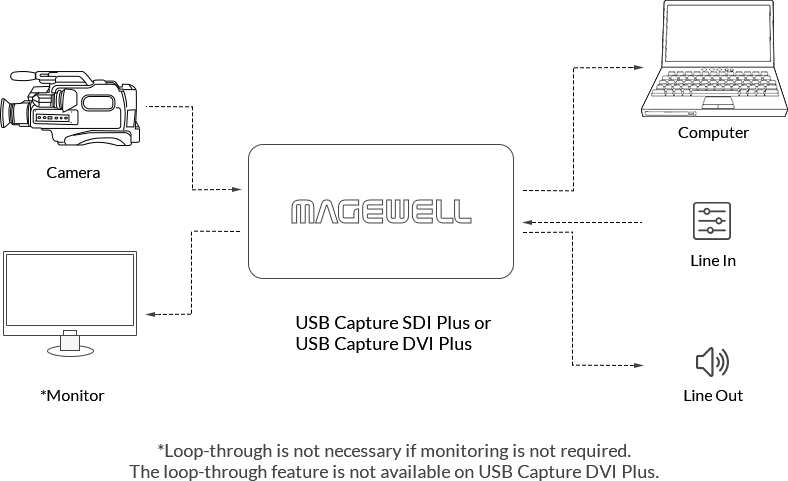

信號 Loop-Through; 音訊輸入、輸出

Signal Loop-Through; Audio Input & Output




支援 1440p144 遊輸入

USB Capture HDMI 4K Plus 支援 2560x1440p 144 的輸入信號。遊戲玩家可以以 144fps 玩遊戲,同時對遊戲畫面進行錄製和直播。

支援 4K 擷取

USB Capture HDMI 4K Plus可以輸入4Kp60 4:4:4,支援HDMI 2.0標準,最高能擷取 4Kp30。USB Capture SDI 4K Plus 支援4Kp30的最大輸入與擷取,支援 6G-SDI

隨插即用,免驅動程式

支援 UVC,無需手動安裝驅動程式

USB Capture Utility 工具

Utility V3 是USB Capture 和USB Capture Plus 系列的免費套裝軟體。使用者可以利用它輕鬆查看和設定擷取相關的參數,自行進行擷取裝置韌體升級和方便取得技術支援所需的資訊。

相容多種操作系統

適用 Windows、 Linux 、 OS X/macOS 和 Chrome OS。

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)。Linux (Ubuntu 12.04–16.10, CentOS 7)。OS X 10.9–10.11。macOS 10.12 Chorme OS。

適用軟體

支援操作系統原生擷取視訊的應用軟體 API,包括 DirectShow、 DirectKS、 V4L2、 ALSA和QuickTime。支援 DirectSound 的音訊擷取端子,與 IKsPropertySet 擴展端子。還兼容大部分 DirectShow 架構的軟體。

美樂威 Magewell Pro Convert 系列
Magewell Pro Convert HDMI 4K PLUS 網路 NDI 連結轉換器
Magewell Pro Convert HDMI PLUS 網路 NDI 連結轉換器
Magewell Pro Convert HDMI TX 網路 NDI 連結轉換器
Magewell Pro Convert SDI 4K PLUS 網路 NDI 連結轉換器
Magewell Pro Convert SDI PLUS 網路 NDI 連結轉換器
Magewell Pro Convert SDI TX 網路 NDI 連結轉換器
Magewell Pro Convert AIO RX 網路 NDI 連結轉換器
Magewell Pro Convert for NDI to HDMI 4K 網路 NDI 連結轉換器
Magewell Pro Convert for NDI to HDMI 網路 NDI 連結轉換器



詳細規格

USB Capture PLUS HDMI | SDI | DVI | HDMI 4K | SDI 4K 詳細規格

USB Capture HDMI PLUS

Model USB Capture HDMI PLUS 一路2K擷取裝置
Supported OS Windows
● Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
● Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
● CentOS 6.5/7 (x86 & x64)
● Fedora 25/26/27 (x86 & x64)
● Red hat 6.5 and above (x86 & x64)
● Other Linux OS with kernel version 2.6.35 and above
Mac
● OS X 10.9/10.10/10.11
● macOS 10.12 and above
Chrome OS
Recommended OS (tested) Windows
● Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
● Ubuntu 12.04/14.04/16.04 (x86 & x64)
● Ubuntu 17.04/17.10/18.04 (x64)
● CentOS 6.5/7.2 (x86 & x64)
● Fedora 25/26 (x64)
● Red hat 6.5 (x86 & x64)
Mac
● OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
● macOS 10.12/10.13.2/10.13.3/10.14.3/10.15
Supported APIs Windows
● DirectShow
● Wave API/DirectSound/WASAPI
Linux
● V4L2
● ALSA
macOS
● AVCaptureSession
● AudioUnit
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Input Interfaces HDMI
- DVI-D 1.0
- HDMI 1.4a
3.5mm audio jack
- Microphone interface
Host Interface USB 3.0
● compatible with USB 2.0
● compatible with USB 3.1 Gen 1
Output Interface 3.5mm audio jack
- headphones interface
Loop-through Interface HDMI
- DVI-D 1.0
- HDMI 1.4
Input features Support for input video resolutions up to 4096x2160
HDMI Specific Features 165MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depth
Support for RGB 4:4:4,YCbCr 4:4:4,YCbCr 4:2:2 color sampling
Support for 2 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Analog Audio Features Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
Capture of analog audio via 3.5 mm microphone interface
Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.
Video Capture format Support for capture resolutions up to 2048x2160
Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB3.0 controller are as follows.)
● 1920x1080 YUY2 (up to 75fps)
● 1920x1080 RGB24 (up to 60fps)
Support for YUY2 & UYVY 4:2:2 8-bit
Support for RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. More capture formats can be set using USB Capture Utility.
Video Processing Features Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
● Weave
● Blend top & bottom field
● Top field only
● Bottom field only
Video aspect ratio conversion
● Auto or manual selection of input aspect ratio
● Auto or manual selection of capture aspect ratio
● Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
● Auto or manual selection of input color format & quantization range
● Auto or manual selection of capture color format, quantization range & saturation range
● Support for RGB, YCbCr 601, YCbCr 709 color formats
● Support for Limited or Full quantization range
● Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK The USB Capture SDK provide functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
LED Indicator Status LEDs indicate the working state of each channel:
● Pulsing slowly: idle
● On: input signal locked
● Off: input signal unlocked
● Double blinks: memory failed or FPGA configuration failed
Form Factor 98.1mm (L) x 56.8mm (W) x 17mm (H)
Accessories USB 3.0 cable
Power Consumption 5V max current: 900mA
Max power consumption: ~ 4.5 W
Working Environment Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

USB Capture PLUS HDMI | SDI | DVI | HDMI 4K | SDI 4K 詳細規格

USB Capture SDI PLUS

Model USB Capture SDI PLUS 一路2K擷取裝置
Supported OS Windows
● Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
● Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
● CentOS 6.5/7 (x86 & x64)
● Fedora 25/26/27 (x86 & x64)
● Red hat 6.5 and above (x86 & x64)
● Other Linux OS with kernel version 2.6.35 and above
Mac
● OS X 10.9/10.10/10.11
● macOS 10.12 and above
Chrome OS
Recommended OS (tested) Windows
● Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
● Ubuntu 12.04/14.04/16.04 (x86 & x64)
● Ubuntu 17.04/17.10/18.04 (x64)
● CentOS 6.5/7.2 (x86 & x64)
● Fedora 25/26 (x64)
● Red hat 6.5 (x86 & x64)
Mac
● OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
● macOS 10.12/10.13.2/10.13.3/10.14.3/10.15
Supported APIs Windows
● DirectShow
● Wave API/DirectSound/WASAPI
Linux
● V4L2
● ALSA
macOS
● AVCaptureSession
● AudioUnit
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Input Interfaces BNC-SD/HD/3G SDI
3.5mm audio jack-unbalanced Line In interface
Host Interface USB 3.0
● compatible with USB 2.0
● compatible with USB 3.1 Gen 1
Output Interface 3.5mm audio jack
- headphones interface
Loop-through Interface BNC - SD/HD/3G SDI
Input features Support for up to 2048x1080 input resolution
SDI Specific Features Integrated cable equalizer extending the cable length as follows:
● up to 330m for SD-SDI signals
● up to 190m for HD-SDI signals
● up to 150m for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 2 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
● YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
● YCbCr 4:4:4 10-bit: captured as 4:2:2
● RGB 4:4:4: R/B sub-sampled
Analog Audio Features Extract the embedded SDI audio and output via 3.5mm unbalanced Line out
Capture analog audio via 3.5 mm unbalanced Line In interface
Video Capture format Support for capture resolutions up to 2048x2160
Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB3.0 controller are as follows.)
● 1920x1080 YUY2 (up to 75fps)
● 1920x1080 RGB24 (up to 60fps)
Support for YUY2 & UYVY 4:2:2 8-bit
Support for RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. More capture formats can be set using USB Capture Utility.
Video Processing Features Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
● Weave
● Blend top & bottom field
● Top field only
● Bottom field only
Video aspect ratio conversion
● Auto or manual selection of input aspect ratio
● Auto or manual selection of capture aspect ratio
● Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
● Auto or manual selection of input color format & quantization range
● Auto or manual selection of capture color format, quantization range & saturation range
● Support for RGB, YCbCr 601, YCbCr 709 color formats
● Support for Limited or Full quantization range
● Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK The USB Capture SDK provide functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
LED Indicator Status LEDs indicate the working state of each channel:
● Pulsing slowly: idle
● On: input signal locked
● Off: input signal unlocked
● Double blinks: memory failed or FPGA configuration failed
Form Factor 110.7mm (L) x 56.8mm (W) x 17mm (H)
Accessories USB 3.0 cable
Power Consumption 5V max current: ~0.5 A
max power consumption: ~2.5 W
Working Environment Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

USB Capture PLUS HDMI | SDI | DVI | HDMI 4K | SDI 4K 詳細規格

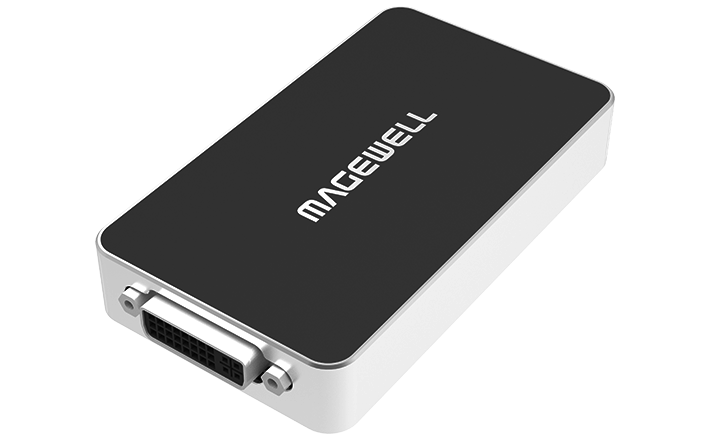

USB Capture DVI PLUS

Model USB Capture DVI PLUS 一路HD擷取裝置
Supported OS Windows
● Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
● Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
● CentOS 6.5/7 (x86 & x64)
● Fedora 25/26/27 (x86 & x64)
● Red hat 6.5 and above (x86 & x64)
● Other Linux OS with kernel version 2.6.35 and above
Mac
● OS X 10.9/10.10/10.11
● macOS 10.12 and above
Chrome OS
Recommended OS (tested) Windows
● Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
● Ubuntu 12.04/14.04/16.04 (x86 & x64)
● Ubuntu 17.04/17.10/18.04 (x64)
● CentOS 6.5/7.2 (x86 & x64)
● Fedora 25/26 (x64)
● Red hat 6.5 (x86 & x64)
Mac
● OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
● macOS 10.12/10.13.2/10.13.3/10.14.3/10.15
Supported APIs Windows
● DirectShow
● Wave API/DirectSound/WASAPI
Linux
● V4L2
● ALSA
macOS
● AVCaptureSession
● AudioUnit
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Input Interfaces DVI-I
- DVI 1.0
- HDMI 1.4a (via breakout cable)
- VGA (via DVI-to-VGA convertor)
- Component (via breakout cable)
3.5mm audio jack
- unbalanced Line In interface
Host Interface USB 3.0
● compatible with USB 2.0
● compatible with USB 3.1 Gen 1
Output Interface 3.5mm audio jack
- unbalanced Line Out interface
Input features Auto scan of video input sources when there is no signal input to the currently selected input source
Manual selection of video input source
Auto selection of linked (embedded) audio input source when the video input source changes
Manual selection of audio input source
Support for input video resolutions up to 2048x2160
VGA & Component Specific Features 12-bit ADC
Support for RGB & YCbCr (YUV) color formats
Support for ‘Separated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
Support for DMT, CEA, CVT, GTF video timings
Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT recommended)
Auto detection of RGB & YCbCr color formats
Auto or manual sampling phase adjustment
Auto horizontal alignment
Support for customized video timings
Support for customized video resolutions for CVT/GTF timings
HDMI Specific Features 225MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depth
Support for RGB 4:4:4,YCbCr 4:4:4,YCbCr 4:2:2 color sampling
Support for 2 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Analog Audio Features Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
Capture of analog audio via 3.5 mm microphone interface
Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.
Video Capture format Support for capture resolutions up to 2048x2160
Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB3.0 controller are as follows.)
● 1920x1080 YUY2 (up to 75fps)
● 1920x1080 RGB24 (up to 60fps)
Support for YUY2 & UYVY 4:2:2 8-bit
Support for RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. More capture formats can be set using USB Capture Utility.
Video Processing Features Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
● Weave
● Blend top & bottom field
● Top field only
● Bottom field only
Video aspect ratio conversion
● Auto or manual selection of input aspect ratio
● Auto or manual selection of capture aspect ratio
● Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
● Auto or manual selection of input color format & quantization range
● Auto or manual selection of capture color format, quantization range & saturation range
● Support for RGB, YCbCr 601, YCbCr 709 color formats
● Support for Limited or Full quantization range
● Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK The USB Capture SDK provide functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
LED Indicator Status LEDs indicate the working state of each channel:
● Pulsing slowly: idle
● On: input signal locked
● Off: input signal unlocked
● Double blinks: memory failed or FPGA configuration failed
Form Factor 101.5mm (L) x 56.8mm (W) x 17mm (H)
Accessories USB 3.0 cable
DVI to VGA connector
DVI-I to HDMI + Component breakout
DB9 to YC + Composite + Analog Audio + Component breakout
Power Consumption 5V max current: 600mA
Max power consumption: ~ 3 W
Working Environment Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

USB Capture PLUS HDMI | SDI | DVI | HDMI 4K | SDI 4K 詳細規格

USB Capture HDMI 4K PLUS

Model USB Capture HDMI 4K PLUS 一路4K擷取裝置
Supported OS Windows
● Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
● Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
● CentOS 6.5/7 (x86 & x64)
● Fedora 25/26/27 (x86 & x64)
● Red hat 6.5 and above (x86 & x64)
● Other Linux OS with kernel version 2.6.35 and above
Mac
● OS X 10.9/10.10/10.11
● macOS 10.12 and above
Chrome OS
Recommended OS (tested) Windows
● Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
● Ubuntu 12.04/14.04/16.04 (x86 & x64)
● Ubuntu 17.04/17.10/18.04 (x64)
● CentOS 6.5/7.2 (x86 & x64)
● Fedora 25/26 (x64)
● Red hat 6.5 (x86 & x64)
Mac
● OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
● macOS 10.12/10.13.2/10.13.3/10.14.3/10.15
Supported APIs Windows
● DirectShow
● Wave API/DirectSound/WASAPI
Linux
● V4L2
● ALSA
macOS
● AVCaptureSession
● AudioUnit
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Input Interfaces HDMI
- DVI-D 1.0
- HDMI 1.4
- HDMI 2.0
3.5mm audio jack
- Microphone interface
Host Interface USB 3.0
● compatible with USB 2.0
● compatible with USB 3.1 Gen 1
Output Interface 3.5mm audio jack
- headphones interface
Loop-through Interface HDMI
- DVI-D 1.0
- HDMI 1.4
- HDMI 2.0
Input features Support for input video resolutions up to 4096x2160
HDMI Specific Features 600MHz HDMI receiver.
Adaptive HDMI equalizer.
Support for customized EDID.
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames.
Full colorimetry support.
Support for up to 4096x2160 4:4:4 60fps input signals.
Support for 2 channel IEC60958 audio streams.
Support for extraction of audio formation information & channel status data.
Support for extraction of video timing information.
Support for extraction of 3D format information.
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode..
Analog Audio Features Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
Capture of analog audio via 3.5 mm microphone interface
Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.
Video Capture format Support for capture resolutions up to 4096x2160
Support for capture frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB3.0 controller are as follows.)
● 1920x1080 YUY2 (up to 90fps)
● 3840x2160 NV12 (up to 30fps)
Support for NV12 & l420 4:2:0 8-bit (up to 4096x2160)
Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096x2160)
Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048x2160)
The default capture formats are YUY2 & NV12. More capture formats can be set using USB Capture Utility.
Video Processing Features Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
● Weave
● Blend top & bottom field
● Top field only
● Bottom field only
Video aspect ratio conversion
● Auto or manual selection of input aspect ratio
● Auto or manual selection of capture aspect ratio
● Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
● Auto or manual selection of input color format & quantization range
● Auto or manual selection of capture color format, quantization range & saturation range
● Support for RGB, YCbCr 601, YCbCr 709 color formats
● Support for Limited or Full quantization range
● Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK The USB Capture SDK provide functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
LED Indicator Status LEDs indicate the working state of each channel:
● Pulsing slowly: idle
● On: input signal locked
● Off: input signal unlocked
● Double blinks: memory failed or FPGA configuration failed
Form Factor 98.1mm (L) x 56.8mm (W) x 17mm (H)
Power Consumption 5V max current: ~ 1.4A
Max power consumption: ~ 7W
Working Environment Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

USB Capture PLUS HDMI | SDI | DVI | HDMI 4K | SDI 4K 詳細規格

USB Capture SDI 4K PLUS

Model USB Capture SDI 4K PLUS 一路4K擷取裝置
Supported OS Windows
● Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
● Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
● CentOS 6.5/7 (x86 & x64)
● Fedora 25/26/27 (x86 & x64)
● Red hat 6.5 and above (x86 & x64)
● Other Linux OS with kernel version 2.6.35 and above
Mac
● OS X 10.9/10.10/10.11
● macOS 10.12 and above
Chrome OS
Recommended OS (tested) Windows
● Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
● Ubuntu 12.04/14.04/16.04 (x86 & x64)
● Ubuntu 17.04/17.10/18.04 (x64)
● CentOS 6.5/7.2 (x86 & x64)
● Fedora 25/26 (x64)
● Red hat 6.5 (x86 & x64)
Mac
● OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
● macOS 10.12/10.13.2/10.13.3/10.14.3/10.15
Supported APIs Windows
● DirectShow
● Wave API/DirectSound/WASAPI
Linux
● V4L2
● ALSA
macOS
● AVCaptureSession
● AudioUnit
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Input Interfaces BNC-SD/HD/3G SDI
3.5mm audio jack-unbalanced Line In interface
Host Interface USB 3.0
● compatible with USB 2.0
● compatible with USB 3.1 Gen 1
Output Interface 3.5mm audio jack
- unbalanced Line Out interface
Loop-through Interface BNC - SD/HD/3G/6G SDI
Input features Support for up to 4096x2160 input resolution
SDI Specific Features Integrated cable equalizer extending the cable length as follows:
● up to 330m for SD-SDI signals
● up to 190m for HD-SDI signals
● up to 150m for 3G-SDI signals
● up to 75m for 6G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G (SMPTE 2081) standards
Support for 2K (2048x1080) & 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 2 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
● YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
● YCbCr 4:4:4 10-bit: captured as 4:2:2
● RGB 4:4:4: R/B sub-sampled
Analog Audio Features Extract the embedded SDI audio and output via 3.5mm unbalanced Line out
Capture analog audio via 3.5 mm unbalanced Line In interface
Video Capture format Support for capture resolutions up to 4096x2160
Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.)
1920x1080 YUY2 (up to 90fps)
3840x2160 NV12 (up to 30fps)
Support for NV12 & l420 4:2:0 8-bit (up to 4096x2160)
Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096x2160)
Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048x2160)
The default capture formats are YUY2 & NV12. More capture formats can be set using USB Capture Utility.
Video Processing Features Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
● Weave
● Blend top & bottom field
● Top field only
● Bottom field only
Video aspect ratio conversion
● Auto or manual selection of input aspect ratio
● Auto or manual selection of capture aspect ratio
● Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
● Auto or manual selection of input color format & quantization range
● Auto or manual selection of capture color format, quantization range & saturation range
● Support for RGB, YCbCr 601, YCbCr 709 color formats
● Support for Limited or Full quantization range
● Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK The USB Capture SDK provide functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
LED Indicator Status LEDs indicate the working state of each channel:
● Pulsing slowly: idle
● On: input signal locked
● Off: input signal unlocked
● Double blinks: memory failed or FPGA configuration failed
Form Factor 110.7mm (L) x 56.8mm (W) x 17mm (H)
Accessories USB 3.0 cable
Power Consumption 5V max current: ~0.86 A
max power consumption: ~4.3 W
Working Environment Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing





以上資料僅供參考,實際規格請以原廠產品公佈資訊為標準,如有更新,不另行通知

碩方科技 FB Link
NewTek 台灣 FB Link
VOXEL HD 數位電視雲媒體製播串流程圖
媒資管理雲、影音雲、視訊雲 Newtek 台灣 產品代理 Matrox 台灣 產品代理 imagine 台灣 產品代理
本網站建議使用IE7.0以上版本瀏覽 最佳解析度1024x768 |68 | 碩方科技股份有限公司 版權所有 copyright © 2017 Voxel Vision Technology Corp. All Rights Reserved.
碩方首頁:http://www.avideo.com.tw  TEL: 886-2-2559-1919  FAX: 886-2-2559-1519  地址:10353 台北市大同區承德路 2 段 81 號 7 樓
