NewTek Connect 專業解決方案 - 全媒體製作導播系統

產品規格

NC2 I/O Module

NC2 I/O Module
Video In NDI, SRT, SDI, RTMP, RTSP
Video Out NDI, SDI
IP I/O Up to 8x
SDI I/O Up to 8x via HD-BNC
4K UHD I/O SDI I/O Up to 2x via 12G-SDI, 6G-SDI, or quad-link 3G-SDI
Media Playback Channels Up to 8x
Recording Channels Up to 8x SDI Inputs Only
Supported Video Formats 2160p: 59.94, 50, 29.97, 25, 24, 23.976
1080p: 59.94, 50, 29.97, 25, 24, 23.976
1080i: 59.94, 50
720p: 59.94, 29.97, 25, 24, 23.976
576i: 50
480i: 59.94
1080p: 60, 59.94, 50
1080p/PsF: 30, 29.97, 25, 24, 23.98
1080i: 30, 29.97, 25
720p: 60, 59.94, 50
576i: 25
480i: 29.97
Supported Media Formats Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more
Audio I/O Up to 8x SDI embedded
Audio Networking Native support for network audio input and output via NDI
Embedded SDI audio supported for all NDI® input and output video signals
Support1 for Dante™, AES67, and ASIO protocols via compatible audio drivers
Timecode LTC and VITC
Signal Monitoring Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
A/V Standards 12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10)
3G-SDI Level A (ST 425-1 Level A Mapping),
Quad Link 3G-SDI (ST 425-5),
HD-SDI (ST 292),
SD-SDI (ST 259)
Video Processing Floating Point, YCbCr +A 4:4:4:4
Audio Processing Floating Point, 96 kHz
Genlock Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported
Multiviewer 1x USB Type C
NIC 1 x 10 Gigabit NIC (10GBASE-T over RJ45) 1 x 1 Gigabit NIC (RJ45)
System Physical H 1.88in (4.28cm) x W18.97in (48.2cm) x D22.73in (57.75cm) / 23.19in (58.91cm) with Bezel - Racking Kit Included
Weight 27.38lb / 12.42kg
功能特色 ■ Dynamic I/O Configuration 靈活的I/O配置
■ 8 Channel Recording 8路錄製
■ Built for NDI 支援 NDI IP 製作
■ Adapts to any workflow 製作流程方便整合
■ Color Correction 支援色彩調校
■ Configurable A/V Sources 自由控制影音來源
■ Multi-Format Processing 支援多格式處理
■ Multiviewer 多監看畫面
■ NDI KVM 切換器
■ Professional Audio 專業音訊
■ Rackmount Chassis 機架式設計
■ Redundant Power 備援電源
■ Video Servers 視訊伺服器
■ Waveform and Vectorscope 內建波形與向量示波器
■ Grab 全解析度擷取
■ Hardware Destination 區域設備傳輸控制
■ Network Source Support 支援網路製作
■ Recording 專業錄製
■ Remote Access 遠端存取
特色說明 功能強大、多功能的 NewTek NC2 Studio I/O 模組是一元化(turnkey)系統,專為 IP 影音製播流程而打造。

■ 動態 I/O 配置
支援 8 x 3G-SDI , 2 x 12G-SDI 與 4 x 3G-SDI 交互配置. 可獨立設定每路 2160p 60 信號

■ 8 路頻道錄製
可整合網路儲存設備,同時錄製 8 SDI inputs 輸入來源. ■ 專為 NDI 建構設計
支援 10Gb Ethernet 網路環境, NC 2 Studio I/O 專為高速網路製作流程而設計, 具有各種 NDI 5 專業功能

■ 適應任何製作流程
功能強大的 NC 2 I/O 解決方案支援 IP 與 SDI 設備與架構. 能透過 USB 與 網路使用*(DANTE/AES67/ASIO/WDM)高品質音訊. 可整合 NDI KVM 技術或 Web-Based API.
*需購買 DANTE/AES67/ASIO/WDM 軟體授權

■ 色彩校正
透過內建處理器控制,獨立調整每路通道的色彩特性,手動配置亮度、對比度、色度、飽和度、白平衡等,或可選擇在通道之間啟用自動色彩匹配。

■ 可調整 A/V 信號源
獨立配置每路通道的視頻和音訊,在您的 Studio I/O 模組可訪問的任何信號源中進行選擇

■ 多格式處理
以任何組合的相容格式接收與傳輸視頻,每路通道均可對解析度和幀率進行設置

■ 多畫面
可透過自訂多畫面排列設定,監看單一或多即時信號。

■ NDI KVM
在連接至同網路中的任何相容電腦、設備或觸控設備上遠端存取使用者介面與控制您的 Studio I/O 模組

■ 專業音訊
靈活支援 High-quality Sound 高品質音訊格式 * : Dante, AES67, ASIO 聲音裝置*
*需購買 DANTE/AES67/ASIO/WDM 軟體授權

■ 機架式機箱
採用標準的 1RU 工業機架式機箱,方便整合到任何專業製作環境、設備或製作流程之中

■ 備援電源
支援 550W Redundant Power 備援電源

■ 視訊伺服器
支援大量檔案格式、螢幕傳輸控制以及“自動播放”設置

■ 專業示波器
校準和監控視訊訊號是否符合播放標準,並通過內置的波形和向量顯示器查看其品質

■ 擷取 擷取頻道上的多格式視訊影像,提供即時使用、後期製作或歸檔備份

■ 硬體位置配置
將來自指定通道的影音訊號輸出至特定 SDI 連接器,或其他受支援適用的設備

■ 支援網路格式
即時配置即時轉換與傳輸,支援 SRT, RTMP, RTSP, HTTP.

■ 錄製
透過網路從單一、多個或所有頻道錄製原始視訊 Native-resolution Video 到網路儲存設備

■ 遠端存取
在任何連網設備的瀏覽器中遠端監控即時信號並控制您的 Studio I/O 模組,此類設備包括 iOS 和 Android 移動設備,針對不同系統有特定的網頁限制

Subject to change without notice.

NewTek Connect Pro

NewTek Connect Pro
Features
  • Up to 4 channels, each configurable as input or output, for any combination of supported sources with built-in standards conversion
  • Supports interoperability between common IP standards to include NDI, ASPEN, and SMPTE 2022*
  • Support for common IP cameras to include models from JVC, Panasonic, PTZ Optics, Sony, and Vaddio
  • Support for capture devices from manufacturers that include AJA, Blackmagic Design, BlueFish 444, DELTACAST, Magewell, Matrox, Teradek, and others, including key and fill pairing on input and output for appropriate video cards; DirectShow devices, webcams, USB3 capture devices, and more*
  • Support for a range of video over IP sources, including RTMP, RTSP, and HTTP streams
  • Support for input of compatible devices and software via Apple AirPlay
  • Support for common audio capture and output devices including professional audio cards, AES67, and Dante*
  • 4 channels of integrated media playback, with support for all common media files and still images (including alpha channel), and Autoplay on NDI tally
  • High-quality still image grab from any source, with motion-adaptive deinterlacing
  • NDI Connect Webserver for remote viewing of NDI sources from a web browser of any networked device, including iOS and Android devices
  • 8-channel audio, with per-channel level control and headphone monitoring
  • Fully configurable color correction settings, including white balance, proc amp controls, and automatic color correction
  • Integrated Waveform and Vectorscope for real-time signal monitoring and adjustment
  • Full field-rate, deinterlaced multi-view monitoring with supplemental NDI program return monitor
  • Configurable workspaces, including support for dual displays and optional graticule overlays, including VU meters, title safe, 4:3 safe, alpha channel checkerboard, and center cross
  • Frame-rate and resolution cross conversion, frame sync and audio reclocking on all inputs, with adjustable per-channel A/V sync
*Support may require a capture card or software driver from another manufacturer.
Minimum System Requirements
  • 64-bit Microsoft® Windows 7 operating system (OS) or better
  • Intel i5 Sandy Bridge CPU or better with integrated GPU and support for AVX instructions (NVIDIA discrete GPU, with 2GB video memory or better recommended)
  • Intel Graphics Driver for Windows version 15.40.37.4835 or newer
  • 8GB system memory
  • Gigabit connection or better
  • Display with screen resolution of 1024 x 768 or higher
Subject to change without notice.

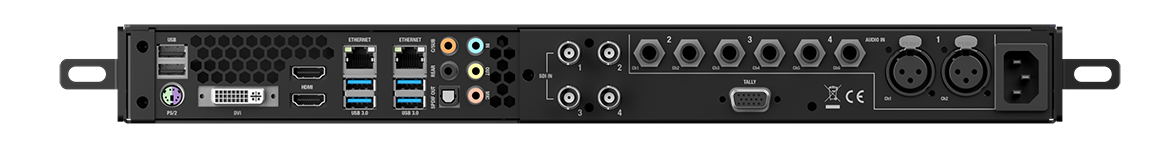

NC1 Studio I/O Module | NC1 Studio I/O IP Module

NC1 Studio I/O Module NC1 Studio I/O IP Module
Interoperability NDI and SDI NDI and SMPTE ST 2110
IP I/O Up to 8x Up to 4x
3G/HD/SD-SDI I/O Up to 8x via HD-BNC -
4K UHD I/O Up to 2x via quad-link 3G-SDI -
Media Playback Channels Up to 8x Up to 4x
Recording Channels Up to 8x SDI Inputs Only -
Supported Video Formats 2160p:59.94、50、29.97、25、24、23.976
1080p:59.94、50、29.97、25、24、23.976
1080i:59.94、50
720p:59.94、29.97、25、24、23.976
576i 50
480i 59.94
1080p: 60, 59.94, 50
1080p/PsF: 30, 29.97, 25, 24, 23.98
1080i: 30, 29.97, 25
720p: 60, 59.94, 50
576i: 25
480i: 29.97
Supported Media Formats Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more
Audio I/O Up to 8x SDI embedded -
Audio Networking Native support for network audio input and output via NDI
Embedded audio supported for all NDI input and output video signals
Support1 for Dante, AES67, and ASIO protocols via compatible audio drivers
Signal Monitoring Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
A/V Standards 4K UHD video conforms to SMPTE ST 2036 (UHDTV1 using Square Division Quad Split)
3G-SDI video conforms to SMPTE 424M (Level A)
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
Serial digital component 4:2:2 video in accordance with SMPTE ST 259M, ST 292M, and ST 425-AB
Support for 16-bit, 20-bit, and 24-bit audio streams
Video Processing Floating Point, YCbCr +A 4:4:4:4 8-bit and 10-bit YUV 4:2:2
Audio Processing Floating Point, 96 kHz 48 kHz
Genlock Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals Supported over IP as per SMPTE ST 2059-2
Multiviewer 1x HDMI or DisplayPort 1x HDMI
NIC 2 x 1 Gigabit NIC 2 x 1 Gigabit NIC
2 x 10 Gigabit NIC2
System Physical 1RU chassis with 280W redundant PSU
19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached



*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
