NDI 開啟 IP 影音製播的新時代 Live Production Over IP NDI 開啟 IP 影音製播的新時代 Live Production Over IP

NDI 擴充中心 NDI 預約展示

NDI Central 完整擴充方案

Live Production Over IP

NDI 開啟 IP 影音製播的新時代 Live Production Over IP 最新的 NDI 版本,讓您擺脫現有設備路數的限制,運用 Network 連結無限的訊號來源,激發更富創造力的工作型態!

❤️❤️❤️ NDI智慧製播/2022智慧城市展 2022年3月22日至3月25日 10:00-18:00 (最後一日只到 17:00)

🍊 NDI 5.0

NDI5 7/20 開放下載!全世界都是你的攝影棚,讓創作無限可能!
2021最新 NewTek NDI 5.0 版本即將發布!新的 NDI 5.0 帶來了更明顯的多點優勢:

■ 強化 NDI遠端連接
■ 直連 NDI音訊
■ 更好的 NDI 橋接
■ 值得信賴的 UDP 傳輸
■ NDI更全面地支援 Apple 系統 (OSX、iOS、tvOS、iPadOS)
■ 提供 NDI NLE 近線編輯更好的Adobe Premiere與Final Cut Pro整合功能
■ NDI Bridge – 透過 LAN、WAN 或公共網路傳輸完整的 NDI 資訊流
■ NDI Audio Direct – 讓 IP 音訊可輕鬆用於音訊應用軟體
■ NDI Remote – 簡單地將遠端訪客加入您的製作中
■ ARM NDI 架構,支援啓動數十億台行動裝置
■ 值得信賴 UDP 傳輸協議
■ 簡單的私有 NDI 網路設置
■ Adobe Creative Cloud Plug-in 強化
■ 全新的 Final Cut Pro Plug-in
■ 全新的 NDI 網路連接管理
■ 全新的 NDI工具快速啟動機制,內建步驟設置提示

快搶先踏入影視製播的新世代! NewTek TriCaster 和 3Play 全系列推出最新的 NDI 版本,讓您擺脫現有設備路數的限制,運用 Network 連結無限的訊號來源,激發更富創造力的工作型態!

下載連結

2020.3 NDI 4.5 發表

■ 支援 IOS 螢幕擷取、即時、無線傳輸
■ 改進 NDI|HX 效能提供更好的傳輸效率
■ 支援更好的多 CPU 編解碼速度與更多先進的壓縮格式
■ 提供 IOS 手機提供多機遊戲製播更好的環境
■ 提供 Unreal Engine AR/VR 、full FPGA 支援

2019 NDI 4.0 發表

■ 相同的傳送速率,品質高達 16 bits per pixel,質與量已超越 SDI
■ 架基於 Multi TCP,只要頻宽許可,可搭載更多的資訊
■ 支援 NTP [網路時間協議],可在多部設備之間自由同步
■ NDI 是一種創新的壓縮標準,運用足夠的頻寬,可大幅降低消耗製作設備的效能

擺脫單向路由限制

NDI讓您不必拘限於SDI影像單方向路由的限制,大幅降低架設1對1線路的成本,在NDI製播流程中,只要使用一般大眾熟悉的Ethernet乙太網路線就能連結您所有的影音製播設備。

雙向溝通,完全互連的影音製播架構

NDI能夠在區域網路環境中雙向溝通,同時進行傳輸與接收多個輸入及輸出信號,支援的影像解析度最多可達4K,聲軌數最多可達16聲軌。且NDI協定中包含使用影片權限、群組、雙向metadata與IP指令的工具,讓您更接近完全互連的影音製播架構。

融合 SDI 升級 IP,踏入未來製播趨勢

不需捨棄既有 SDI 攝影機或基礎設施的投資,您的製播環境就能立即踏入未來。NDI 支援當前超過十萬種普遍使用的設備。適合任何想要以電腦設備創建IP製播環境的影音製作者

NewTek NDI LIVE IP 製作技術擁支援廣泛,擴充完整,製作人員可利用市場上成熟的擴充架構,將 NDI LIVE IP 製作技術完整融入現有的製作環境之中。


NDI 完整擴充架構

/ Live Production StudioCoast vMix vMix delivers broadcast quality production in an affordable software solution. Produce, record and stream professional live video productions in HD or 4K with your own PC or laptop. With full NDI support, content creators are able to access IP video sources with ease and also transmit cameras, audio and outputs to any NDI capable devices on the network. TopDirector - MultiCam Switcher, Live Stream TopDirector is a MUST-HAVE tool for all NDI users, simply running on your iPhone or iPad as a portable, reliable multi-view monitor. Up to 9 inputs simultaneously, supports Full NDI, NDI|HX H.264 and NDI|HX HEVC, zoom in for full-screen detail monitor, supports NDI low bandwidth mode, supports action and title safe area and metadata display with real-time audio VU meters, automatically find out all NDI sources in local, NDI Discover Server and NDI bridge. NewTek TriCaster THERE IS A TRICASTER FOR EVERY PRODUCTION. Powerful and affordable tools. Help tell your story…beautifully. NewTek TriCaster systems put an entire suite of media production capabilities at your fingertips. You can make anything from keynote presentations and webcasts to online training and sporting events look amazing with quality, consistency and efficiency. Open a world of opportunities with the tightest integration of NDI available in any product.. NewTek 3Play: More than replay. Compelling production at every angle. With price-performance for any budget. Venues looking to enhance the event atmosphere and extend their brands online, or broadcasters engaging audiences at home and increasing program exposure—anyone can use NewTek 3Play to make small events look like network-style shows and turn large events into experiences that audiences will never forget. Boinx mimoLive mimoLive™ is the all-in-one video encoder, switcher and streaming software for Mac. It enables you to switch multiple cameras, insert presentations, add layered graphics like weather maps, lower-thirds, social media feeds, green screens, and much more. mimoLive makes professional broadcast tools accessible for everyone and it supports NDI input and NDI playout. Gnural Net LiveToAir LiveToAir is a professional, multi-channel video calling system that can connect your productions with from 1 to 4 remote guests directly from their Chrome browser – no downloads required. It offers independent control of each guest’s audio and video and integrates into your studio using both NDI and HD-SDI connections. Nagasoft broadcast touchpad NScaster X1 is a highly integrated broadcast touchpad with a built-in 11.6-inch full-HD touch screen. It integrates the features of multi-channel switching, recording, broadcasting, tuning, subtitling, monitoring, and built-in 4G module to meet the varieties of live requirements. This small, portable tablet, with only 1kg net weight emerges the streaming media industry and creates innovative ideas to the modern world... multiCAM systems PTZ cameras and Live Production systems multiCAM Systems delivers easy-to-use, tailor-made live video production systems using NDI which feature advanced video switching capabilities and PTZ camera technology for recording, live streaming and podcasting visual radio. Designed specifically with the customer in mind, we ensure our cost-effective solutions fit your technical and budget requirements. They give you the competitive and creative edge producing quality video content. RGB Link - Touch Panel Switcher, Recorder, & Streamer RGBLink’s TAO 1pro is the first Compact Seamless Switcher to include an NDI encoder and two HDMI 1.3 and two USB 3.0 inputs. TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras via UVC protocol and can act as a bridge to a webCAM via HDMI or to a standard NDI camera, offering full NDI and NDI | HX compliance. Production Systems Streaming Applications Media Players / Converters dvantech VEGA-2002 4K/UHD live HEVC/H.264 video encoder now with NDI The VEGA-2002 is a small, low power, real-time encoding module based on Ambarella’s video compression technology which fully supports NDI|HX, and supports UHD resolution and HEVC and AVC codecs. It features 4K video acquisition through built-in SDI or HDMI inputs and encoded video can be streamed to mobile or Wi-Fi networks by connecting an USB wireless adapter. NewTek Spark Plus IO 12G SDI NewTek Spark Plus™ video converters are the fastest, easiest, and best way to video over IP. Ultra-portable enclosures with resolutions up to UHD 60p, the groundbreaking benefits of NDI, and a host of tools and capabilities makes NewTek Spark Plus video converters the right choice for the full spectrum of video production needs. DELTACAST NDI to HDMI converter and Live Graphics Software DELTA-neo N2H allows you to decode and visualize any NDI stream on a wide range of HDMI™ 2.0 displays devices, TV screens and video projectors. DELTA-neo N2H supports NDI 4.0 with next generation NDI|HX technology. DELTA-cg is a highly intuitive character generator that generate high-end graphics for any live event production such as sport, news, election, studio, mobile, stadium, entertainment and house of worship shows. Download your Free trial DELTA-cg Easy. Science Image: High Bandwidth NDI Studio 4K Series Converters Science Image currently has a full range of NDI converters. NDI studio 4K H is a 4K version converter with HDMI Input/Output interface NDI studio 4K S is a 12G SDI / UHD version converter with SDI Input/Output interface NDI studio 4K SH is a full interface version of 12G SDI and HDMI 4K The three newly released 4K boxes all have the same features, such as: NDI coder and decoder capability, up-down converter (which can work with NDI simultaneously), optical fiber transceiver, external analog audio embedding and de-embedding, reserved internal Intercom interface, support DC, USB three power supply models and more. TBS Technologies HDMI to NDI HX sinlge channel encoder decoder and five channel converters TBS2603au is a low cost HDMI encoder and HDMI decoder integrated into the same device TBS2603se is H.265/H.264 HDMI Video Encoder. TBS2605 is a multiple HDMI input Video Encoder, supports either two 4Kp 30 HDMI video inputs or five 1080p 60HDMI video input. All the three encoders have integrated native NDI|HX support, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI and NDI|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices. Exterity Converters Exterity is a market-leading provider of IP video, guest experience and digital signage technology that helps organisations to harness the power of video to engage, inform and entertain. Our end-to-end solutions enable you to capture TV and video content directly from any source and manage its delivery to any connected device via your existing network. Exterity’s AvediaStream Transcoders, 4K Encoders and ArtioPortal Desktop all support NDI, creating an end-to-end NDI solution. This seamless integration enabling organisations to easily contribute, distribute and display content, sharing production-quality video between AVoIP live production environments and Exterity IP video solutions. Kiloview Converters Kiloview is a professional solution provider of IP-Based video transmission with products covering encoding, decoding, transcoding, routing, recording etc. based on H.264/H.265 and NDI, both hardware and software, to realize the philosophy of“Any-in, Any-out and Anywhere”. As a pioneer of NDI technology, Kiloview provides a series of solutions covering NDI and NDI|HX converters, from 3G-SDI to 12G-SDI, 4K HDMI. Kiloview also provide software like Multiview, NDI Router, Intercom server etc. for different applications. Comart System Camera and Converters Since 1998 when the company developed a multiplex security board for the first time in the world, it has continuously accumulated advanced technologies; and it developed HD-SDI cameras and recorder solutions utilizing HD-SDI interfaces again the first time in the world in 2007. Further, it has recently developed high-speed cameras, 3D figure Service, Medical cameras , NDI solution uses FPGA Circuit, which show its determination to abide by the basic principle of "providing customers with best solutions. Sumavision Sumavision (Stock Code:300079) is a worldwide leader of video delivery solutions to broadcast, cable, Internet, mobile and telco video service as well as digital TV, conditional access system, OMC (Omnimedia Cloud) system, SDM (Software Defined Media) and remote CMTS. With ground-breaking technologies and innovative concepts, Sumavision aims to provide customers with outstanding and high performance products. Yuan High-Tech Development Yuan High-Tech (GTSM: 5474) established in 1990, with headquarter in Taipei, Taiwan, is the leading force in the digital home entertainment, broadcasting, and surveillance market, delivering an extensive range of high-quality video/audio products for system integrators and ODM customers for over 27 years. As one of the major providers to these markets, YUAN’s solutions can be found within the product lines of worldwide leading ODM customers and channel partners. SC6D0 N1 HDMI2+ w/NDI SC6D0 N1 AIO w/NDI JLONvision ENC1 Plus JLONvision ENC1 Plus hardware codecs convert your HDMI and SDI video sources to NDI| HX for low latency live streaming over Ethernet or WiFi.Because ENC1 Plus supports HEVC and h. 264 / AVC encoding and is compatible with the NDI | HX, we can realize the high quality and low bit rate, low latency of the IP network broadcast video stream. ENC1 Plus supports 1 channel 4k 30 FPS (HDMI) and 1080P (SDI) codec functions. It also supports live streamin transcodeing inlcuding RTMP to NDI, RTSP to NDI, HTTP to NDI and other protocols BirdDog 4K UHD Converters BirdDog has been All In on NDI since the very beginning and boasts a large range of HD and 4K NDI Decoders, Encoders, Full Bandwidth NDI Cameras, Wallplates, and software applications. BirdDog also has a Cloud platform that allows for remote productions over the public internet using NDI. BirdDog products are available globally through a network of distributors and resellers and used by some of the biggest names in Broadcast, AV, House of Worship, Live Streaming, Esports, and Education. BirdDog’s headquarters are in Melbourne, Australia with in-country presence in USA and UK. Magewell NDI Pro Convert Family Magewell’s Pro Convert NDI encoders and decoders let users easily, reliably, and cost-effectively bring HDMI or SDI signals into and out of NDI workflows with extremely low latency for applications ranging from live, IP-based video production to AV-over-IP distribution. Pro Convert NDI encoders are available with a choice of resolution and input interface, with 4K HDMI and 12G-SDI models supporting UHD video at full 60 fps. Pro Convert NDI decoders support both full NDI and NDI|HX, and can also decode H.264 and H.265 streams in many streaming protocols. Our Ultra Encode universal live media encoder also supports NDI|HX as well as SRT and other streaming protocols. Teradek’s Cube 700 encoders just got a massive upgrade with NDI Teradek's premium line of encoders can now be powered by NDI. Teradek's Cube 705 and 755 encoders pack world-class video quality into a rugged, portable chassis for quick IP video deployments at any location. Each encoder includes HDMI and 3G-SDI inputs and Ethernet / WiFI connectivity — giving you portability and versatility at every shoot. NewTek Connect Pro - Monthly Subscription Transform your workflow, multiply your sources and expand your connectivity options with this multi-purpose software. Simply subscribe, install on a compatible system on your network, and expand your productions with the complete set of NewTek Connect Pro capabilities. Encoders Decoders Encoders/Decoders / Utility Applications NDI|HX Upgrade for Panasonic Cameras Upgrade your Panasonic camera with NewTek NDI|HX. Compatible Cameras: AG-CX10 | AG-CX350 | AG-CX98 | AJ-CX4000 | AJ-UPX360 | AJ-UPX900 | AW-HE130 | AW-HE35 | AW-HE38 | AW-HE40 | AW-HE42 | AW-HE48 | AW-HE58 | AW-HE65 | AW-HE68 | AW-HE70 | AW-HE75 | AW-HE145 | AW-UE40 | AW-UE43 | AW-UE53 | AW-UE150 | AW-UE155 | AW-UE50 | AW-UE65/UE63 | AW-UE70 | HC-X2500 | AW-UE53 NDI Tools NDI Tools: More Devices. More Content. More Possibilities. NDI Tools is a free suite of applications designed to introduce you to the world of IP. NDI makes it possible to connect to any device, in any location, anywhere in the world – and transmit live video to wherever you are. EMS Easy Media Suite EMS Helps customers transition to NDI infrastructures to enable flexible, scaleable, smart, and easy workflows. Easy Media Suite NDI supply users video and audio signals to these without running bulky cables over long distances and freedom from dependency on distribution amps, video matrix routers, and the like. Easy Media Suite NDI simplifies operations and delivers flexible scaling of services focusing on quality and stability, to help content creators, broadcasters and media organizations to produce rich, high quality content that brings the viewer closer to the action and build successful media businesses.LEARN MORE Medialooks Video Transport - Per Channel Annual License Medialooks, established in 2005, serves as a partner to global companies seeking fast, quality software development tools to transform ideas to reality, and to organizations requiring low-latency video transport over the public Internet for remote production. Medialooks has provided services to a wide range of markets, including broadcast, entertainment, sports, media serving, medical, surveillance, education, house of worship, gaming, and more. ORFAST NDI Viewer ORFAST NDI Viewer provides an outstanding ability for watching up to 10 IP live streams simultaneously. This is a great tool for your own TV-channel or small to medium sized studio. ORFAST NDI Viewer provides a simple and user-friendly interface which doesn't require a long and complex configuration.LEARN MORE ENCO Automated Captioning and TV-Channel-in-a-Box Greatly reduce overall costs by automating your captioning workflows with enCaption, a turn-key, patented solution for NDI workflows. Using enCaption, content creators can provide real-time, live captioning any time, without any advance notice and without the high costs of live captioners or signers. ClipFire offers broadcasters a comprehensive, reliable and cost-effective platform for managing and automating broadcast production and integrated channel playout tasks. ClipFire supports live input and output over the network using NDI. EZ Live Caption service 1-Year & 6 month & 1 month subscriptoins AUTOMATICALLY TRANSCRIBE AND CAPTION LIVE STREAMS with EZLive Caption, an NDI-enabled live stream transcription service. EZLive Caption, a windows-based software application, provides near real-time captioning of the voice track for live streaming. Captions are automatically injected into Internet-bound streams or can easily be edited in post-production, with the EZLive editor, for on-demand content streams. Pronology StreamFile Core™ is a cross-platform application for encoding the popular NewTek NDI IP video standard to NLE-friendly ProRes & DNx codecs. The application is agnostic to frame rate and resolution. Its architecture allows for a future-proof way to utilize IP video standards without any hardware upgrades to existing systems. StreamFile Core™ allows any facility to enter the IP technology landscape by bridging the gap between IP-based technology and conventional file-based workflows. mxfSPEEDRAIL mediaLIVE, mediaPLAY and mediaREC by MOG mediaLIVE Encodes NDI, RTMP, HLS , MPEG-TS and other live video streams in real-time and compression for distribution to viewers, delivering the highest video quality at minimum bitrates with low latency. It streams up to 16 channels simultaneously in real-time. Social media streaming outputs: Facebook, YouTube Live, Twitch, Periscope. I is a channel playout solution fully tailored for NDI / IP / SDI channel origination, management, delivery and play-on-air with master control switching with clip playback. Multi-Format and Multi-Resolution, up to 8K. mediaPLAY - A channel playout solution fully tailored for NDI / IP / SDI channel origination, management, delivery and play-on-air with master control switching with clip playback. Multi-Format and Multi-Resolution, up to 8K. mediaREC – a NDI / IP / SDI Video Recorder for content production, post-production, finishing, and distribution, up to 8K resolution. It can perform as standalone tool, for small environments or very specific tasks or it can cluster with other family members without the need for any extra software, for larger environments or bigger work loads.It is a truly centralized media management platform, from Ingest to Distribution. mediaREC will simplify your media recording tasks, with its extensive feature set. NDI|HX Capture for iOS devices. Turn your mobile iOS device into a NDI source. Hundreds of millions of iOS phone users should not be ignored. No other IP technology for video can translate to mobile phones because NDI is software-defined, not hardware-constrained. Have your wireless, real-time, full frame-rate, and up to 4K resolution content delivered to any NDI enabled production systems-OBS, XSplit, Wirecast, TriCaster and more. With high-efficiency low bandwidth NDI|HX data transfer, anyone with an iOS phone has the ability to screen capture live. Goal Sport Software uses NDI|HX in its portable wireless Video Refereeing Systems GS Video Review is an ultra portable video refereeing system for multiple sports powered with Goal Sport Software that uses NDI|HX to ingest up to 6 in-sync cameras in an arenas network, which become immediately available as live video inputs. It will cover every angle of the sports field with intuitive operation by tablets with GS Video Review Software. It is an all-in-one system for easy operation and effortless integrations wherever you require inside an arena. NewTek Connect Pro NewTek Connect Pro converts your IP cameras, webcams, capture card inputs and media files into NDI video sources for live production. With up to 4 discreet video channels that are configurable as an NDI input or output. Includes integrated standards conversion, professional color correction tools, 8-channel audio control, production utilities, and support for a range of capture devices. LiveText™ If you’re ready to strengthen the visual impact of your productions, then you’ll want to add LiveText to your workflow. Make your productions pop with this remote titling system. Use preloaded templates or build custom graphics and titles, display real-time data, and engage viewers with compelling visual enhancements. Autocue QStart Teleprompting Software QStart teleprompting software from Autocue allows you to easily edit and control scripts on a Mac or PC, and output to a teleprompter or a TriCaster via NDI (PC version only). Teleprompting will help to: Improve production workflow Reduce production time Strengthen connection with the audience Increase confidence of on-screen talent With NDI enabled, Autocue’s QStart will be recognizable as a source by other NDI enabled devices and systems connected to a standard Ethernet local area network. To help all TriCaster users implement teleprompting, Autocue is offering QStart software free of charge to all NewTek customers. Simply register, install on a compatible system on your network, and enhance your productions with unlimited professional prompting capability. Multiviewer Transport WAN Recording / Cameras NDI|HX Camera for Android & iOS devices. New cameras. New perspectives. New possibilities. From introducing new camera angles and new vantage points to your coverage, to adding completely new dimensions to your live broadcasts, webcasts and presentations, the NDI|HX Camera App opens up a world of creative possibilities for your productions. Best of all, you can shoot with the same mobile device camera you use to take snapshots and selfies, so there’s no experience needed and no additional camera training required. Salrayworks NDI Motorized Robotic PAN TILT HEAD Salrayworks introduces N BOT, the world's first NDI motorized camera head. • Fitted with up to a 2.0 kg camera it moves up to 355 PAN degrees and TILT Down 40 degrees as well as 20 degrees UP 1 at a rate of 15 degrees per second. • This exquisitely designed N BOT is incredibly quiet and smooth in motion, so it won't interfere with in-studio shooting or your live Streaming. • The NDI hardware (silicon-based) achieves about 140Mbit at 1080p60 and is visually lossless. • Power (POE+) and NDI stream through an Ethernet cable. The camera's zoom-in-out, focus and IRIS can be controlled remotely using the LANC input. N BOT simplifies video streaming with cableless. • It stores and recalls up to 10 positions with a precision less than 0.1 degrees. Whether at the studio or on the stage, memorizes the previous location with extreme accuracy and immediately begins shooting. NewTek NDI|HX PTZ2 Camera CURRENTLY ON SALE FOR $1995.00 (originally $2195.00). The world's first camera with built-in NDI|HX Technology. Connect one cable for video, audio, remote control and power over standard computer networks. HD 1080p 60 PTZ camera with 20x optical zoom and simultaneous NDI|HX, SDI and HDMI output. Compatible with all NDI systems. NewTek NDI|HX PTZUHD camera Meet the world’s first NDI|HX PTZ camera with Ultra High Definition (UHD) video. A precision engineered camera offering smooth PTZ action, a state of the art Sony sensor and video, audio, control, tally and power with a single cable. NDI|HX Upgrade for Panasonic Cameras Upgrade your Panasonic camera with NewTek NDI|HX. Compatible Cameras: AG-CX10 | AG-CX350 | AG-CX98 | AJ-CX4000 | AJ-UPX360 | AJ-UPX900 | AW-HE130 | AW-HE35 | AW-HE38 | AW-HE40 | AW-HE42 | AW-HE48 | AW-HE58 | AW-HE65 | AW-HE68 | AW-HE70 | AW-HE75 | AW-HE145 | AW-UE40 | AW-UE43 | AW-UE53 | AW-UE150 | AW-UE155 | AW-UE50 | AW-UE65/UE63 | AW-UE70 | HC-X2500 | AW-UE53 A separate NDI|HX license key is required for each camera. Internet connection required for initial activation NDI|HX Upgrade for HuddleCamHD Upgrade your HuddleCamHD with NewTek NDI|HX. Compatible Cameras: HC12X-HUDDLEVIEW | HC20X-SIMPLTRACK2 For cameras with NDI already in them from HuddleCamHD visit HERE Lumens 4K/1080p NDI|HX PTZ Camera All Lumens NDI|HX PTZ cameras deliver high-quality video with ultra-low latency and connect directly to an NDI network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time. All models come with a 5-Year Warranty. Models: VC-A61PN: 4K UHD 30fps; 30x optical zoom VC-A51PN: 1080p FHD; 20x optical zoom Canon 4K UHD outdoor PTZ Camera with NDI|HX CR-X300 4K PTZ outdoor remote camera offers professional image quality video and multiple interfaces including SDI, HDMI, IP, and a built-in NDI|HX support, providing features necessary for professional use. Housed in an aluminum die-cast body, it also features an IP65 rating for protection from dust and water yet is small and lightweight enough to be carried around for portable installations. These features allow this versatile camera to be installed in virtually any location. LM-Cam LM-Cam turns your iPhone into a professional NDI camera. LiveMedia Corporation’s LM-Cam is an application for the Apple iPhone that supports NDI/NDI-HX and provides a flexible NDI video source for live productions. LM-Cam works well with other NDI encoders/sources. LM-Cam offers adjustable frame rates and resolutions and supports full NDI/NDI-HX (H.264/HEVC) encoding formats. Multiple camera parameters, including focus, A/E, and white balance, with the ability to save presets, are also provided. YNM OPTOver NDI High Bandwidth PTZ camera The OPTOver. P-AN series PTZ camera is a high-performance Full HD remote camera that supports NDI High Bandwidth. Its excellent image quality also makes it suitable for broadcast applications, from news and live sports production to reality TV shows. It’s also ideal for use in lecture capture, auditoriums and houses of Worship, as well as corporate or government. Suitable for table top or ceiling mounting, the attractively styled camera body features a large tally lamp that give presenters a clear visual indication when they’re on air. YNM Systems, Inc. is a manufacturer of professional audio-visual equipment located in Seoul, South Korea. 1 Beyond AutoTracker™ 3 Camera with NDI Automated presenter tracking camera simultaneously outputs NDI|HX and HD-SDI. Ideal for lecture capture, corporate training, and town hall meetings. This industry-leading PTZ camera follows a presenter based on facial and motion detection, offering the smooth viewing experience of a manned camera without the operator.LEARN MORE Comart System Camera and Converters Since 1998 when the company developed a multiplex security board for the first time in the world, it has continuously accumulated advanced technologies; and it developed HD-SDI cameras and recorder solutions utilizing HD-SDI interfaces again the first time in the world in 2007. Further, it has recently developed high-speed cameras, 3D figure Service, Medical cameras , NDI solution uses FPGA Circuit, which show its determination to abide by the basic principle of "providing customers with best solutions. multiCAM systems PTZ cameras and Live Production systems multiCAM Systems delivers easy-to-use, tailor-made live video production systems using NDI which feature advanced video switching capabilities and PTZ camera technology for recording, live streaming and podcasting visual radio. Designed specifically with the customer in mind, we ensure our cost-effective solutions fit your technical and budget requirements. They give you the competitive and creative edge producing quality video content. AVKANS NDI|HX PTZ cameras AVKANS has two NDI|HX PTZ models, the AV-CM20-NDI-B with 20x zoom and the AV-CM30-NDI-B with 30x Zoom. Our NDI Cameras support Power, Video/Audio and Control, all over a single Ethernet cable(Cat5/6) simplifying installation and setup for live streaming systems. These PTZ cameras feature broadcast frame rates and NDI video ouputs. SalrayWorks NDI High Bandwidth PTZ camera SalrayWorks Inc. has a wide array of PTZ camera options including the Sharon 360, 20, and 30 which are cost-effective NDI High Bandwidth PTZ cameras. All models have built in NDI FPGA by Salrayworks. The SHARON 360 incorporates SONY's 30 x Optical Zoom, EXMOR R CMOS image sensor, frame rates up to 1080P60, and capable of 360° seamless rotation. SalrayWorks is located in Seoul, Korea and plans to release various NDI High Bandwidth solutions. Kato Vision 1080P and 4K PTZ cameras These three video conferencing cameras have a refined aesthetic shape, operate smoothly without noise are highly reliability and have and long-term stability. They offer 4K, 1080P 60 NDIHX in H..264 and H.265 Panasonic AW-UE100 4K NDI Camera Panasonics 4K NDI PTZ camera supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production. KEY FEATURES Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT Supports 4K 60p shooting and 12G-SDI output Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom Supports FreeD for building AR/VR systems Adopts new mechanical pan/tilt for improved responsiveness and quietness PTZOptics NDI|HX Cameras All PTZOptics NDI|HX Cameras support power, video/audio, and control, over a single Ethernet cable, simplifying the installation and setup of live streaming systems. These PTZ cameras feature broadcast frame rates and NDI|HX video output favored by video production professionals. PTZOptics cameras that are network connected can provide IP camera controls for pan, tilt, and zoom along with the ability for operators to remotely configure those operations.LEARN MORE AVONIC CM70 HD NDI Camera AVONIC CM70 HD NDI Camera The CM70-NDI is an all-in-one high-quality PTZ camera that allows the move to an all IP infrastructure even for mobile applications. With concurrent HDMI, 3G-SDI, USB 2.0, IP stream ethernet outputs and the high-efficient NDI|HX IP technology. The CM70-NDI includes a rich feature set usually found on broadcast-grade cameras, including a user-adjustable Color Matrix, SRT streaming and Tally Light. The combination of a high-quality PTZ camera with a protocol that improves every live production gives the CM70-NDI endless possibilities. BZBGEAR 4K & 1080p NDI|HX PTZ Cameras BZBGEAR NDI|HX PTZ cameras deliver solutions for virtually any unique broadcasting application. 4K and 1080p options capture the highest resolution standards while a single Ethernet cable provides audio/video, control, and power—optimizing setup and broadcasting production. Control can be done through our free BG-PTZ-CONTROL app or other various methods such as NDI Tools, Visca IP/ONVIF, and RS-232/485. BG-4KND-12XUHP: 4K NDI/HDMI/USB 3.0 with Sony CMOS lens (zoom: 12x/20x/30x; color: silver) BG-UPTZ-ND Series: 1080p NDI/HDMI/SDI/USB 3.0 (zoom: 12x/20x/30x; color: black, white) BG-ND-XHSRP Series: 1080p NDI/HDMI/3G-SDI (zoom: 20x/30x; color: silver) HuddleCamHD Pro IP The HuddleCamHD Pro IP 4k webcam allows for fluid electronic pan, tilt, and zoom to capture video in 4k or lossless, zoomed-in views at 1080p or 720p quality. With a 108-degree field of view, it features a beamforming dual-microphone array. By utilizing NDI|HX, this 4K camera can bring ultra-low latency video and audio into video conferencing, network video, or live streaming projects.The HuddleCamHD Pro IP comes with a handheld IR remote. Canon 4K UHD PTZ Cameras with NDI|HX Canon CR-N500/CR-N300 4K PTZ remote cameras offer prestigious high image quality video and multiple interfaces including SDI, HDMI, IP, and a built-in NDI|HX support, providing features necessary for professional use. Both with 4K UHD 30P resolution offer high quality optical zoom for excellent zoom range and a cinematic depth of field and are equipped with powerful features and functions to be utilized in many industries including house of worship, education, broadcast, corporate, events and more. Apantac 1080P NDI PTZ Camera Apantac’s NDI-enabled AP-1080P-PTZ-20x camera captures video up to 1080P and offers 3G SDI, HDMI, USB 3.0, and HD video over IP decoding. It supports a variety of formats ideal for educational and corporate applications and integrates with most video conferencing and other software applications. It offers 20x optical zoom + 2x digital zoom with 61 degree FOV and a 1/2.8 inch, 5 mega pixel high quality CMOS. JVC 4K and HD PTZ Cameras The new 4K KY-PZ400NW/NB and HD KY-PZ200NW/NB cameras provide optimal streaming image quality and performance for remote production over the internet and are equipped with NDI|HX, SRT, and RTMPS streaming, H.265/H.264/MJPEG encoding and VITC (Vertical Interval Timecode) multi-camera synchronization technologies. Additionally, with the incorporated Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), the new JVC PTZ cameras also feature multi-camera synchronization which is ideal for the mixing and streaming of live event production. Tallis NDI|HX Camera App by Dev47Apps Tallis Camera turns your phone into an NDI source, letting you take advantage of the high-quality mobile camera in your video productions! Go mobile, cover new angles, use the phone as a webcam, and other possibilities all with up to 4K (UHD) video, 60fps video capture, stereo audio, and DSLR-like camera controls including manual focus, white-balance, and auto-exposure adjustments. Meet CIS Corp’s First 4K NDI PoV Camera: DCC-4KNDI CIS Corporation has added a new 4K cam featuring NDI compatibility to its growing lineup of FHD and 4K PoV cameras. The new DCC-4KZM will neatly migrate into the advanced IP-based workflow made possible by NDI technology. The product will roll-out in two stages: first as a kit-level product (DCC-4KNDI), followed by VCC-4KNDI with casing. This new camera features state-of-the-art Clairvu™ ISP for high quality image processing and accurate color reproduction, and so much more. Vaddio Cameras Vaddio’s RoboSHOT 12E/30E NDI cameras deliver striking, high-definition video. Cutting-edge image signal processing results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions. Equipped with Tri-Synchronous MotionTM technology, all three axes of the camera move simultaneously for ultra-smooth, natural camera motion. Made in USA. AIDA NDI|HX Cameras Harness the power of NDI|HX through AIDA Imaging’s PTZ and POV cameras for dynamic video productions and live streaming. Powered by a backlit illuminated Sony sensor and high-quality optics, AIDA cameras deliver high-quality full HD video with ultra-low latency video transmission to any NDI or IP network infrastructure. All AIDA NDI cameras are full featured, broadcast centric oriented with workflow simplicity and cost-effectiveness in mind. Angekis Saber 4K NDI PTZ Camera The Saber 4K NDI is a 4K UHD p30 camera with 20X or 12X optical zoom combining full video output interface (NDI, 3G-SDI, HDMI and USB3.0) for various live streaming applications and utilize simultaneous output. AVer Auto Tracking and PTZ Cameras AVer is an award-winning provider of video and collaboration solutions that improve productivity and enrich lives. The AVer TR311HN AI Auto Tracking Camera combines 2 tracking modes, 12X optical zoom and NDI connectivity. The PTZ330N and PTZ310N NDI PTZ Live Streaming Cameras combine both standard SDI and HDMI connections as well as Ethernet/NDI network connectivity for HD video streaming, recording, and broadcasting. The PTZ models offer 30X or 12X optical zoom and can output HD video and audio while receiving control signal and power over a single connection. BirdDog 4K UHD Converters BirdDog has been All In on NDI since the very beginning and boasts a large range of HD and 4K NDI Decoders, Encoders, Full Bandwidth NDI Cameras, Wallplates, and software applications. BirdDog also has a Cloud platform that allows for remote productions over the public internet using NDI. BirdDog products are available globally through a network of distributors and resellers and used by some of the biggest names in Broadcast, AV, House of Worship, Live Streaming, Esports, and Education. BirdDog’s headquarters are in Melbourne, Australia with in-country presence in USA and UK. Datavideo Technologies PTC-140 NDI The PTC-140 NDI is a cost-effective SDI/HDMI NDI PTZ camera, which features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution 20x optical zoom, 10 digital zoom allows you to mount it near or far and still get great, sharp shots. The PTC-140 NDI is an IP camera as well, supports H.264 /H.265 video compression and dual stream output. It features NDI | HX, and supports simultaneous NDI | HX, 3G-SDI, HDMI up to 1080P60 hardware output. PTC-140NDI camera is the first NDI camera launched by Datavideo. Ikan OTTICA 4K PTZ NDI camera The OTTICA™ 4K PTZ Video Camera from Ikan is a broadcast-quality PTZ camera that utilizes NDI|HX, a high-efficiency low-bandwidth protocol. The camera features a 1/2.5″ Sony CMOS sensor and varifocal lens with 12x zoom to capture videos at a maximum resolution of 4K progressive at 60fps. It supports NDI|HX, HDMI, USB3.0 outputs simultaneously. The rest of the OTTICA line features the first OTTICA camera (1080p 60fps) and the OTTICA IP PTZ Camera Controller supporting VISCA, ONVIF, PELCO. For a video of it click HERE iSmart PTZ Cameras for indoor and outdoor iSmart Video launches its new camera series integrated with Newtek NDI technology. The camera series initially has three models, with resolutions from 1080 HD to 4K UHD for indoor and outdoor applications. AMC-NH1202: 1/1.8” CMOS sensor, 12X optical zoom, 4KP30, NDI, HDMI, 3G-SDI, USB3.0; AMC-NE220NV3: 20X optical zoom, 1080P60, NDI, HDMI, HD-SDI; HMC-NS3003N: 30X Sony FCB camera module, 1080P60, NDI, DVI-D AC3-NS3003N: 30X optical zoom, 1080P60, NDI, IP67 for Outdoor applications Kind NDI|HX LIVECAM 4K Wireless camera The KIND NDI4K PTZ camera models are KD-SK180NW/KD-SK480NW and KD-SK580NW, which are 4K remote wireless NDI cameras. The KIND NDI4K PTZ camera combines broadcast-level image quality with uniform, accurate, quiet, stable, and 300°/S high-speed pan/tilt/zoom (PTZ) operations are integrated, whether it is lens zoom or camera start, travel, and brakes are very uniform and linear. It is a broadcast-grade 4K p30 PTZ camera born for shooting, and is equipped with Flexible SDI, HDMI, HDBaseT interfaces, support NDI, NDI HX wireless and SRT and other network video functions. Marshall CV730-NDI 4K UHD NDI|HX PTZ Camera with 12GSDI Marshall CV730-NDI camera captures broadcast quality video up to 3840x2160p at 60fps through simultaneous NDI 12GSDI,and HDMI. Marshall delivers over 40-years of experience servicing the top broadcast and professional AV integrators in the world. Highly conditioned to design and build-in only a high level of video performance with reliable video signals, durable build qualities, and highly responsive support staff. NDI extends this heritage by leveraging the remarkable NDI value proposition of simple discovery and setup, ultra-low latency, and convenience of NDITools. Whether it’s ptz, zoom, or fixed cameras - Marshall has an affordable NDI solution for your next project. MEVO Start Logitech Mevo Start, an all-in-one live streaming camera with virtual-PTZ capabilities and NDI | HX connectivity, now supports NDI5 and HEVC encoding. Create a dynamic presence with simple tap-to-cut, pinch-to-zoom, and swipe-to-pan controls. Wireless and PoE* compatibility is included, too – all from an iOS or Android device. Smaller than a smartphone with a built-in six-hour battery, Mevo Start is perfect as a discreet and cost-effective NDI| HX camera. Minrray 4K NDI PTZ Camera UV401A-NDI With advanced NDI|HX technology, the UV401A-NDI camera delivers high-quality video with ultra-low latency and connects directly to an NDI network, utilizing NDI- based video production workflows without additional configuration, reducing cost and set-up time. Equipped with Brushless DC motor and 4K Ultra HD 1/2.5” CMOS sensor that delivers a crystal-clear image and natural color reproduction. Outstanding video performance and quality make you capture every scene easy. NDI|HX Upgrade for Lumens Cameras Upgrade your Lumens camera with NewTek NDI|HX. Compatible Cameras: VC-A50P NDI|HX Upgrade for Marshall Cameras Upgrade your Marshall camera with NewTek NDI|HX. Compatible Cameras: CV620-IP |CV620-IPW NDI|HX Upgrade for PTZOptics Cameras CURRENTLY ON SALE FOR $399.00 (originally $599.00). Upgrade your PTZ Optics camera with NewTek NDI|HX. Compatible Cameras: PT-12X-SDI-xx-G2 | PT-20X-SDI-xx-G2 | PT-30X-SDI-xx-G2 | PT-12X-USB-xx-G2 | PT-20X-USB-xx-G2 | PTVL-ZCAM | PTEPTZ-ZCAM-G2 | PT12X-ZCAM | PT20X-ZCAM A separate NDI|HX license key is required for each camera. Internet connection required for initial activation NDI|HX Upgrade for Sony Cameras Upgrade your Sony camera with NDI|HX. Compatible Cameras: BRC-X400 | SRG-X400 | SRG-X120 | BRC-X401* | SRG-X402* | SRG-201M2* | SRG-HD1M2* | SRG-XP1 | SRG-XB25 A separate NDI|HX license key is required for each camera. Internet connection required for initial activation Telycam Cameras Telycam’s NDI PTZ camera includes 4K to 1080p FHD version, 5x, 12x, 20x to 35x versions are optional, with full video output interface (NDI, 3G-SDI, HDMI and USB3.0), for various live streaming application. Integrated with NewTek’s NDI, Telycam’s NDI PTZ camera creates a plug-and-play environment for live streaming, making it possible to produce abundant and diverse live content. ValueHD Corporation 4K UHD NDI PTZ Camera Value HD presents our VHD-VX710N our NDI 4K Ultra HD PTZ Video Conference Camera. ●4K ultra-high resolution Using a new generation of SONY 1/ 2.5 inch, 8.51 million pixel high-quality UHD CMOS sensor. It can provide 4K ultra high definition,up to 4K@60p image coding output, and downwards compatibility with 1080p, 720p resolution, etc. ●71°FoV+12 x optical zoom Exclusive high quality 4K ultra wide angle lens with 8 million ultra high resolution, 12x optical zoom, horizontal field of view up to 71 degree. ●HDMI2.0 Supports HDMI 2.0, can directly output 4K uncompressed digital video. ●Low power dormancy Supports low power dormancy/wake up, power consumption is less than 400mW in when dormant. ●Local storage function Support local storage function, without NVR to achieve the U disk local direct recording. ●Low Lighting High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB. Value HD also provides the 1080p 60 VHD-V60CL-N HD NDI Camera. NDI Camera Licenses PTZ HD PTZ UHD Specialty Cam / Graphics RT Software RT Software is a leading broadcast graphics specialist offering a complete range of graphics and telestration products for Sports, News, Entertainment and Channel Branding. Our low cost products all include NDI as standard and Tactic integrates with Newtek Replay Servers. Swift - Modular broadcast graphics system that includes CG editors, channel branding, newsroom graphics, virtual studios, augmented reality and more. Tactic - Telestration graphics for Sports and News. Designed for fast turn around story telling with a range of features to make operator's lives as quick and simple as possible. Free trial downloads and free online training videos available on our website. Flowics NDI Converter Flowics is the most comprehensive cloud-based platform powering remote and in-studio production of live graphics and interactive content for linear and digital broadcasters. The Flowics NDI Converter App is a dedicated tool that converts HTML5 cloud-based broadcast graphics to the NDI video streaming format. Nixus Celio Graphics System Nixus Celio is an NDI® real time graphics system that simplifies the creation of high quality video graphics by using Microsoft Excel for everything from data entry to playout control. With Celio, you have a custom video graphics system that’s easy to operate for sports, news, weather, election coverage, financial reports and more. SportzCast LiveSportzCG Automated Score Overlays Bundle and ScoreConnect LiveSportzCG Automated Score Overlays Bundle delivers real-time scoreboard data into your custom graphic overlays from virtually any type of scoreboard make or model and uses NDI® to deliver them. Sportzcast ScoreConnect connects directly to the venue scoreboard & delivers live game data direct from the scoreboard into your NDI® broadcast. Resolume Arena 7 and Avenue 7 Arena 7 Media Server, is an instrument for VJs, AV performers and video artists. Arena puts all your media and effects right at your fingertips, so you can quickly play and improvise your live visuals using NDI® technology. including full NDI® support , plus advanced options only found in Arena including projection mapping and blending projectors. You can control it from a lighting desk and sync to the DJ via SMPTE timecode. Avenue 7 is an instrument for VJs, AV performers and video artists. Avenue puts all your media and effects right at your fingertips, so you can quickly play and improvise your live visuals using NDI® technology. NewBlueFX Titler Live 4 products Crunchtime is no time for a learning curve. Enhance your live productions with professional graphics, titles and animations —in real-time. Save time, costs and aggravation Queue crawls, lower 3rds, scores, and more Deliver premium video content on the fly 3DStorm LiveMedia Server NDI LiveMedia Server NDI LiveMedia Server NDI-2 is the first software dual-channel HD video player recorder, using the NewTek NDI® protocol. It can be installed on any Windows PC connected to an Ethernet LAN and can play and/or record simultaneously two NDI channels from/to most of the industry standard codec and file formats. It has a built-in scheduler to schedule playback and record and offers also one overlay for each channel. ClassX LiveBoard Mini - Perpetual License LiveBoard Mini allows you to manage the real-time live graphics of your productions in a NDI® workflow. It is a little jewel among the professional broadcast graphics playout products, powerful and versatile: create eye-catching graphics with the integrated plugins and/or insert NDI® Sources for great Picture-In-Picture DVE transitions on endless layers. Explore the pre-loaded Weather, Sports, News and PIP projects in order to see the potentials of your new LiveBoard Mini. Watch a cool quick tutorial HERE MultiCam logger, OnTheAir CG , OnTheAir Video , MovieRecorder by Softron all for macOS Multicam Logger is a macOS application that allows logs all of the angles (or inputs) used in a live multi-camera production. It records which input the director has selected on his TriCaster® and the timecode the angle was changed. Multicam Logger creates a multicam clip for Final Cut Pro X, Final Cut Pro 7 and Adobe Premiere Pro using the logs and the files recorded by any type of video recorder. The resulting media is used to edit a final version of the production that includes any necessary corrections OnTheAir CG is a macOS Character Generator that allows users to play dynamic graphics to NDI®. With its unparalleled ease of use, it’s the ideal companion to your Tricaster™ as it sends the fill and key signal through its NDI® output. OnTheAir CG is used both in Live productions and for 24/7 playout. Transform your Mac computer easily into a powerful character generator! OnTheAir Video is a macOS video playout application that allows users to easily playback HD or 4K videos to NDI®. Play up to 8 HD channels on a single Mac. With its unparalleled ease of use, it’s the ideal companion to your Tricaster™. Transform your MacBook Pro or any other Mac computer into a powerful multichannel video player. MovieRecorder is a macOS application that allows to record multiple channels using various combinations of NDI® or SDI sources, from SD to 4K. Supports edit-while-ingest, so the editor can start editing while the file is still recording. Encode to multiple destinations simultaneously for redundancy or "proxy" recording, schedule your recordings, and many more features. MovieRecorder is the ingest solution that helps you getting things done. Nemo3D family of broadcast graphics applications with NDI Nemo 3D is a powerful, flexible, easy to use and developer friendly broadcast graphics application Nsport applies animated titles to your live sporting events and can be configured for various types of sports. NsportApps is a group of applications that offer dedicated solutions for many different types of sports. NemoCG is a free, community edition variant of Nemo2d+ with NDI output only RECAST by Singular.Live Singular.Live Recast HTML5 to NDI® conversion utility. Easily integrate the award-winning Singular.Live Digital Overlay Platform into your live production using Recast. Recast is an HTML5 to NDI® desktop utility that allows you to easily convert Singular.Live HTML5 overlays to an NDI® stream in real time. Combined with the award-winning Singular.Live Digital Overlay Platform, users can quickly and easily create dynamic, professional branding in real-time. DELTACAST NDI to HDMI converter and Live Graphics Software DELTA-neo N2H allows you to decode and visualize any NDI® stream on a wide range of HDMI™ 2.0 displays devices, TV screens and video projectors. DELTA-neo N2H supports NDI® 4.0 with next generation NDI®|HX technology. DELTA-cg is a highly intuitive character generator that generate high-end graphics for any live event production such as sport, news, election, studio, mobile, stadium, entertainment and house of worship shows. Download your Free trial DELTA-cg Easy. Broadcast Graphics Graphic Applications / Hardware Tools Tally Interfaces / Displays Broadcast Monitors / Displays / Audio / Network Products / Mobile 行動製作 TopDirector - MultiCam Switcher, Live Stream TopDirector is a MUST-HAVE tool for all NDI users, simply running on your iPhone or iPad as a portable, reliable multi-view monitor. Up to 9 inputs simultaneously, supports Full NDI, NDI|HX H.264 and NDI|HX HEVC, zoom in for full-screen detail monitor, supports NDI low bandwidth mode, supports action and title safe area and metadata display with real-time audio VU meters, automatically find out all NDI sources in local, NDI Discover Server and NDI bridge. NDI|HX Camera for Android & iOS devices. New cameras. New perspectives. New possibilities. From introducing new camera angles and new vantage points to your coverage, to adding completely new dimensions to your live broadcasts, webcasts and presentations, the NDI|HX Camera App opens up a world of creative possibilities for your productions. Best of all, you can shoot with the same mobile device camera you use to take snapshots and selfies, so there’s no experience needed and no additional camera training required. NDI|HX Capture for iOS devices. Turn your mobile iOS device into a NDI source. Hundreds of millions of iOS phone users should not be ignored. No other IP technology for video can translate to mobile phones because NDI is software-defined, not hardware-constrained. Have your wireless, real-time, full frame-rate, and up to 4K resolution content delivered to any NDI enabled production systems-OBS, XSplit, Wirecast, TriCaster and more. With high-efficiency low bandwidth NDI|HX data transfer, anyone with an iOS phone has the ability to screen capture live. Tallis NDI|HX Camera App by Dev47Apps Tallis Camera turns your phone into an NDI source, letting you take advantage of the high-quality mobile camera in your video productions! Go mobile, cover new angles, use the phone as a webcam, and other possibilities all with up to 4K (UHD) video, 60fps video capture, stereo audio, and DSLR-like camera controls including manual focus, white-balance, and auto-exposure adjustments. / Routing & Orchestration Mobile : TopDirector - MultiCam Switcher, Live Stream . NDI|HX Camera for Android & iOS devices . NDI|HX Capture for iOS devices. Tallis NDI|HX Camera App by Dev47Apps / 硬體工具 Hardware Tools : 3DStorm Live Tally Box / 攝影機 Cameras : NDI|HX Upgrade for Sony Cameras BRC-X400 | SRG-X400 | SRG-X120 | BRC-X401* | SRG-X402* | SRG-201M2* | SRG-HD1M2* | SRG-XP1 | SRG-XB25, Panasonic Cameras AG-CX10 | AG-CX350 | AG-CX98 | AJ-CX4000 | AJ-UPX360 | AJ-UPX900 | AW-HE130 | AW-HE35 | AW-HE38 | AW-HE40 | AW-HE42 | AW-HE48 | AW-HE58 | AW-HE65 | AW-HE68 | AW-HE70 | AW-HE75 | AW-HE145 | AW-UE40 | AW-UE43 | AW-UE53 | AW-UE150 | AW-UE155 | AW-UE50 | AW-UE65/UE63 | AW-UE70 | HC-X2500 | AW-UE53, HuddleCamHD HC12X-HUDDLEVIEW | HC20X-SIMPLTRACK2, Marshall Cameras CV620-IP |CV620-IPW, PTZOptics Cameras PT-12X-SDI-xx-G2 | PT-20X-SDI-xx-G2 | PT-30X-SDI-xx-G2 | PT-12X-USB-xx-G2 | PT-20X-USB-xx-G2 | PTVL-ZCAM | PTEPTZ-ZCAM-G2 | PT12X-ZCAM | PT20X-ZCAM, Lumens Cameras VC-A50P, PTZ HD - Minrray 4K NDI PTZ Camera UV401A-NDI, Sony Cameras BRC-X400 | SRG-X400 | SRG-X120 | BRC-X401* | SRG-X402* | SRG-201M2* | SRG-HD1M2* | SRG-XP1 | SRG-XB25, Panasonic Cameras AG-CX10 | AG-CX350 | AG-CX98 | AJ-CX4000 | AJ-UPX360 | AJ-UPX900 | AW-HE130 | AW-HE35 | AW-HE38 | AW-HE40 | AW-HE42 | AW-HE48 | AW-HE58 | AW-HE65 | AW-HE68 | AW-HE70 | AW-HE75 | AW-HE145 | AW-UE40 | AW-UE43 | AW-UE53 | AW-UE150 | AW-UE155 | AW-UE50 | AW-UE65/UE63 | AW-UE70 | HC-X2500 | AW-UE53, HuddleCamHD HC12X-HUDDLEVIEW | HC20X-SIMPLTRACK2, Marshall Cameras CV620-IP |CV620-IPW, PTZOptics Cameras PT-12X-SDI-xx-G2 | PT-20X-SDI-xx-G2 | PT-30X-SDI-xx-G2 | PT-12X-USB-xx-G2 | PT-20X-USB-xx-G2 | PTVL-ZCAM | PTEPTZ-ZCAM-G2 | PT12X-ZCAM | PT20X-ZCAM, Lumens Cameras VC-A50P, JVC 4K and HD PTZ Cameras, Vaddio Cameras , / 現場製作 Live Production TopDirector - MultiCam Switcher, Live Stream . LEARN MORE NewTek TriCaster NewTek TriCaster THERE IS A TRICASTER FOR EVERY PRODUCTION.StudioCoast vMix . NewTek TriCaster . NewTek 3Play . Boinx mimoLive . Gnural Net LiveToAir . Nagasoft broadcast touchpad . multiCAM systems PTZ cameras and Live Production systems . RGB Link - Touch Panel Switcher, Recorder, & Streamer / 轉換器 Converters : 編碼 Advantech VEGA-2002 . NewTek Spark Plus IO 12G SDI . 解碼 DELTACAST NDI to HDMI converter and Live Graphics Software . Science Image: High Bandwidth NDI Studio 4K Series Converters . TBS Technologies HDMI to NDI HX sinlge channel encoder decoder and five channel converters . Kiloview Converters . Yuan High-Tech Development . BirdDog 4K UHD Converters . Magewell NDI Pro Convert Family 編解碼 Science Image: High Bandwidth NDI Studio 4K Series Converters . TBS Technologies HDMI to NDI HX sinlge channel encoder decoder and five channel converters . Exterity Converters . Yuan High-Tech Development . BirdDog 4K UHD Converters . Magewell NDI Pro Convert Family / 網路產品 Network Products / 應用工具 Utility Applications / 顯視器 Displays / 聲音 Audio / 影像 Graphics / 路由 Routing & Orchestration :Rascular - RouteMaster VR Lite

NDI Tools 擴充工具

Newtek NDI Tools
相關介紹
RECAST by Singular.Live
相關介紹
ORFAST Viewer
相關介紹
EMS Multiviewe
相關介紹
QStart Teleprompting
相關介紹
Medialooks
相關介紹

NDI 攝影機

Apple IOS Caputure APP
相關介紹
Apple IOS Camara APP
相關介紹
NDI HX FOR Panasonic
相關介紹
NDI HX FOR PTZOptics
相關介紹
NDI HX FOR Marshall
相關介紹
NDI HX FOR Lumens
相關介紹

NDI 即時製作 擴充工具

vMix HD/PRO
相關介紹
TopDirector
相關介紹
Gnural Net LiveToAir
相關介紹
Nagasoft touchpad
相關介紹
RGB Link
相關介紹
Boinx mimoLive
相關介紹
mxfSPEEDRAIL mediaLIVE
相關介紹
Multicam Logger - macOS
相關介紹
OnTheAir Video macOS
相關介紹

NDI 轉換 擴充工具

NDI 轉換器中心
相關介紹
EZ Live Caption service
相關介紹
DELTA-neo N2H
相關介紹
Medialooks
相關介紹
ENCO ENCAPTION
相關介紹
EMS Encoder HD
相關介紹

NDI 繪圖解說 擴充工具

Panamation Pro
相關介紹
GlobalStreams
相關介紹
tOG-Sports
相關介紹

NDI 錄製 擴充工具

Metus INGEST
相關介紹
EASY INGEST
相關介紹

NDI 連結 擴充工具

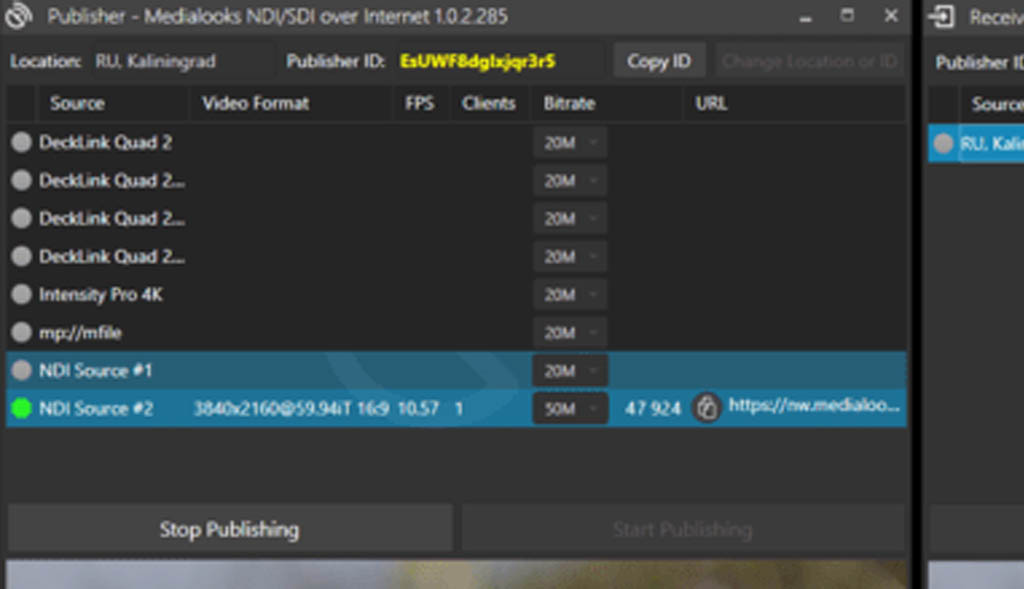

Video Transport
相關介紹
LiveSportzCG
相關介紹
Gnural Net LiveToAir
相關介紹

NDI 圖文 擴充工具

Titler Live
相關介紹
Resolume 6
相關介紹
LiveSportzCG
相關介紹
Panamation Pro
相關介紹
GlobalStreams
相關介紹
3DStorm LiveMedia
相關介紹

NDI TOOLS 全系列 NDI 工具

更多設備.更多內容.更多可能性

NewTek NDI 工具免費應用軟體套件,能讓您輕鬆地過渡到 IP 製作流程,將您的作品和製作流程提升。只需簡單地下載,您便能夠將更多設備和應用軟體整合到製作流程,在媒體製作中插入更多內容,在網路上擴展媒體視訊機會。

2021 NDI Tools ( NDI 5 )

More Devices. More Content. More Possibilities.

NDI Webcam Input

NDI Studio Monitor

NDI Screen Capture

NDI Test Patterns

NDI Access Manager

NDI Bridg

NDI Audio Direct

NDI Remote

NDI for After Effects

NDI for Premiere

NDI for VLC

  • NDI BridgeNDI 5.0

    使用安全簡單的網路設定,在世界任何地方的遠端點與點之間安全地共享 NDI 來源
    NDI Bridge 採用原生的 NDI 點對點製作流程,能降低距離所產生的複雜問題、成本和延遲。 有效解決 alpha 通道、KVM、PTZ、計數、元數據等等傳輸問題!
  • NDI RemoteNDI 5.0

    只需共享一個連接,即可安全地與多個遠端資源連接,透過 Internet 接收他們的視訊和音訊。
  • NDI Audio DirectNDI 5.0

    NDI Audio Direct 音訊Plug-In能支援市面上主流軟體應用程式使用 NDI。
    支援選擇、接收和創建具有極高品質與接近零延遲的多聲道音訊。輕鬆實現 IP 音訊製作 audio-over-IP ,支援虛擬或雲端的製作流程。
  • NDI Studio Monitor

    在網路中查看或顯示 NDI 視訊源。 NDI Studio Monitor 功能強大,可在任何相容的筆記型電腦或工作站上運行,即時查看任何可用的 NDI 通道,安排多個 NDI 通道進行即時監控,可為各種專業看板和顯示器應用進行部署

    Feartures

    • 可獨立配置每個檔案的視訊源、疊加和音訊
    • 從單一設備開啟、分發和管理多個檔案
    • 支援兼容的行動裝置進行控制和設定
    • 支援多顯示器視訊牆和電子看板
    • 遠端控制 PTZ、錄製和設定
    • 直接從NDI Studio Monitor多來源錄製 NDI 檔案
    • 可使用網路伺服器進行遠端控制
    • NDI Studio Monitor 可用作路由器與服務器,支援NDI輸出,傳送到多個外部顯示器
  • NDI for Adobe Creative Cloud

    在進行設計時,將網路中 Adobe Creative Cloud 內容直接傳輸到您的製作流程。NDI for Adob​​e Creative Cloud 是適用於 Adobe標準創意工具的唯一軟體Plug-In,可直接從時間軸查看即時、無渲染的IP視訊播放和預覽,簡化審查和批准流程,促進團隊合作,並加速直播編輯製作流程。 全新的 NDI5 音訊可輸出到音效卡,或透過NDI直接輸出,使用者可以聽到與輸出到無失真的音訊; 提供 Adobe Video Production.NDI 5 完整的編輯器製作流程。
  • NDI 導入 I/O

    使用儲存系統將取用的 NDI 源與錄製媒體檔案從本機或跨網路導入 Adob​​e Creative Cloud 應用。安裝專用的 Adob​​e CC NDI 導入 I/O 後,所有 Creative Cloud 應用程式都會將 NDI 檔案識別為另一個媒體選項。只需將媒體應用到編輯的時間線以進行編輯與動畫項目。由於 NDI 檔案在錄製期間帶有時間碼,讓復雜的多機位編輯是一項輕鬆的工作。 可兼容 Adob​​e After Effects CC、Premiere Pro CC 等軟體應用,支援帶音訊和 Alpha 通道的全分辨率即時視訊,啟用同步多機位編輯。
  • NDI for Final Cut ProNDI 5.0

    新的 Final Cut Pro Plug-In能從時間線 timeline 播放中進行 NDI 輸出。
    提供即時音訊和視訊影格緩衝輸出,使用 Final Cut Pro 加入製作比以往任何時候都更容易。
  • NDI VLC Plugin

    使用直接源於 VLC 媒體播放器的 IP 信號源在網路中呈現視訊內容和其他受支援的多媒體。NDI VLC Plug-In將免費播放器的所有實例即時編碼為 NDI 格式,使幾乎任何格式的媒體文件都能被用於您的即時製作
  • NDI Test Patterns

    向網路上的其他 NDI 設備發送參考信號以確認連接並啟用音訊和視訊校正。 NDI 測試模式包括各種測試模式和音訊音調,以確保精準的顏色屬性和適當的音量。
  • NDI Scan Converter

    採集後呈現全螢幕顯示、視窗、應用程式、播放器和網路攝影鏡頭的任意組合,或來自網路上任何位置的任何計算機的特定區域。 NDI Scan Converter可將任何筆記型電腦或工作站轉換為多源IP視訊輸入設備
  • NDI Screen Capture HX

    NDI Screen Capture HX 可與 PC GPU 配合擷取螢幕畫面,將其作為網路上的 NDI 來源,提供製作使用。 NDI Screen Capture HX 突破性功能為即時內容創建強大的新製作流程: 令人難以置信的低延遲螢幕畫面擷取功能,支援 4K UHD 高畫質、 120 Hz與更高影格速度或更高 NDI|HX IP點對點硬體加速,這些技術包括螢幕擷取、顏色轉換和視訊壓縮在 NVIDIA 硬體上使用高質量的專用編碼管道。 通過對視訊影格速率的完全控制,可以在網路(包括無線網路)上獲得完美的影像品質!還支援從音效備的輸入或輸出,與視訊信號完全同步擷取音訊。 完整的遠端 KVM 解決方案,允許從遠端設備遠程控制鍵盤、滑鼠、電子手寫板或觸控面板。完全控制正在使用的視訊頻寬、解析度與影格速率。
  • NDI|HX Driver

    支援任何相容設備連接和接收具有 NDI | HX 擴展的視訊產品的輸出,例如 NewTek Connect Spark 和 NewTek NDI PTZ攝影機,以及支援的第三方 NDI | HX 攝影機
  • NDI Virtual Input

    指定可用的 NDI 資訊源作為支援網路攝影鏡頭的流行軟體應用程式的視訊輸入。隨著 NDI 虛擬輸入, NDI 源被認為是標準的Microsoft Windows 視訊及音訊信號源,在不增加複雜度的情況下,輕鬆提升你的視訊通訊
  • NDI Access Manager

    管理網路上 NDI 系統和信號源的可見性、訪問權限。NDI 存取管理功能讓您可以對 NDI 通道進行分組整理,選擇您的設備能夠訪問哪個組別,以及哪個組別可以接收您的 NDI 通道,讓網路內的可用 NDI 通道變得更加簡單

NDI 官方工具 硬體需求

NDI Tools

  • Microsoft Windows operating system (32-bit compatible; 64-bit recommended)
    • NDI Scan Converter requires Windows 8 or better
    • NDI Virtual Input require Windows 7 or better
    • All other NDI Tools require Windows Vista or better
  • Mac-compatible versions of NDI Tools require Mac OS X or better
  • Intel Core i3 CPU or better (Intel i5 CPU or better recommended)
  • 6GB RAM or better

NDI for Adobe Creative Cloud

  • 64-bit Microsoft Windows 7 or better (PC); Mac OS X or better (Mac)
  • Intel Core i5 CPU or better recommended
  • 2GB RAM or better
  • Adobe Creative Cloud membership (compatible applications include After Effects CC, Premiere Pro CC, Prelude CC, and SpeedGrade CC)

利用您當前的設備投資與混合 SDI/IP 製作製作流程,或使用 NewTek IP 系列過渡到完全基於 IP 的互連製作生態系統。IP 系統是適用於端對端視訊製作的顛覆性、一站式解決方案,它能突破傳統視訊基礎設施對當前製作的限制,與此同時實現規模和範圍都無以倫比,基於 IP 的超高效製作流程。
